Filter cartridges for automatic backwash

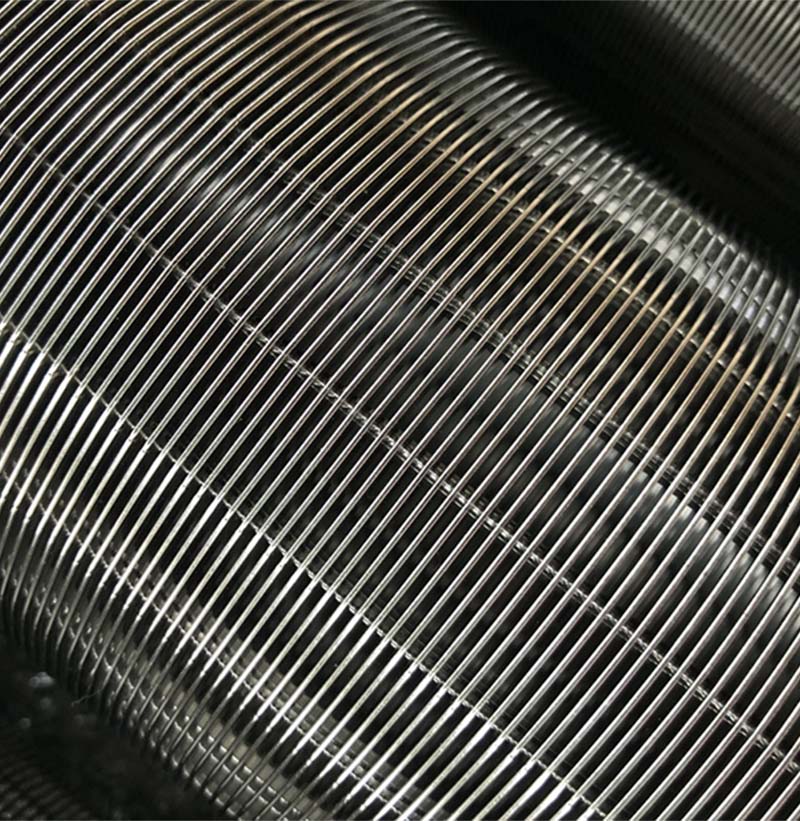

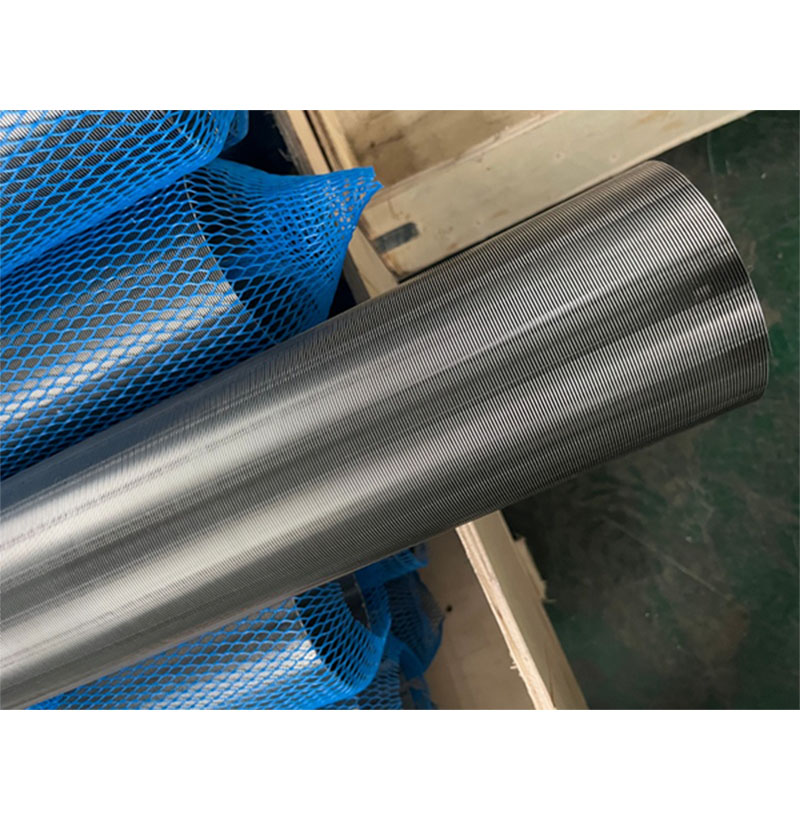

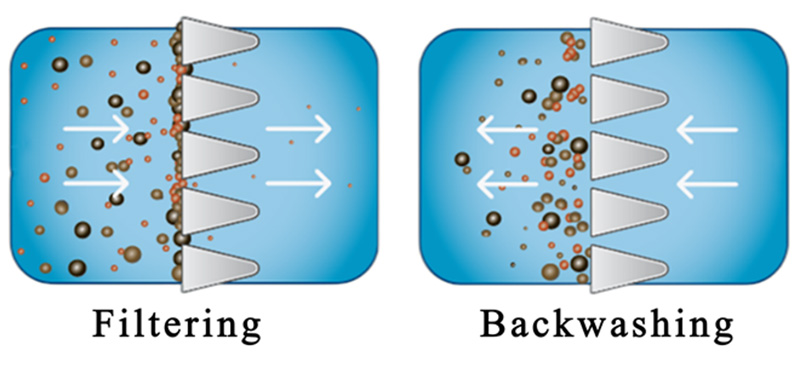

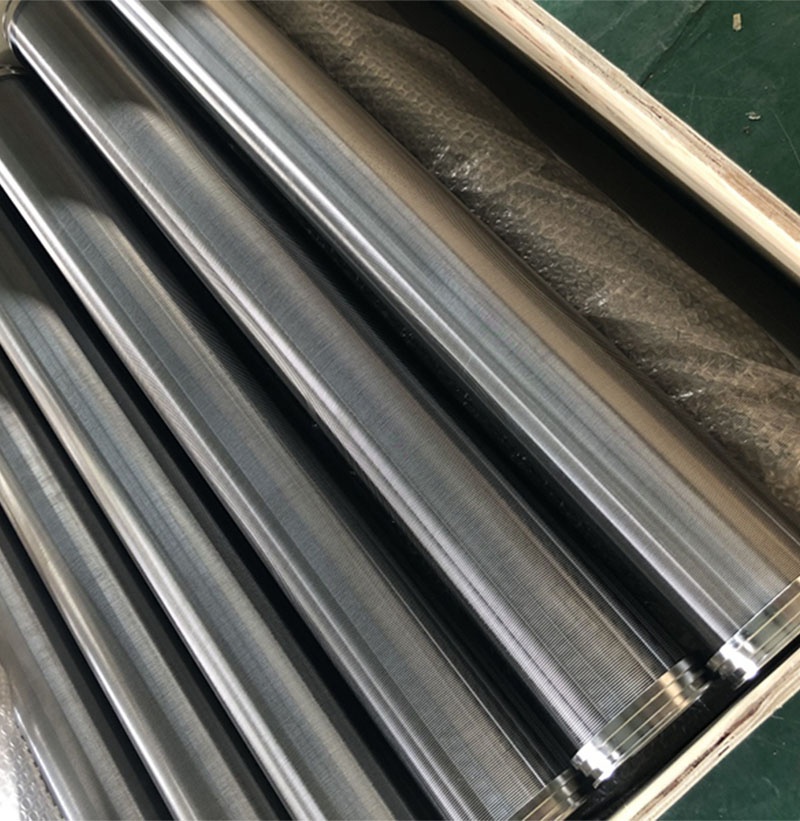

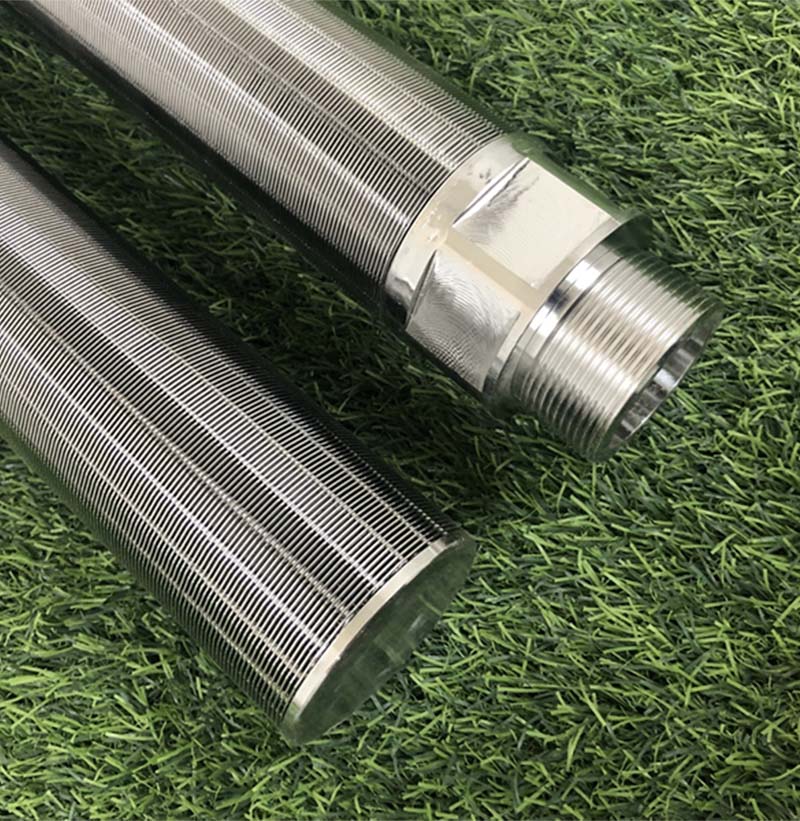

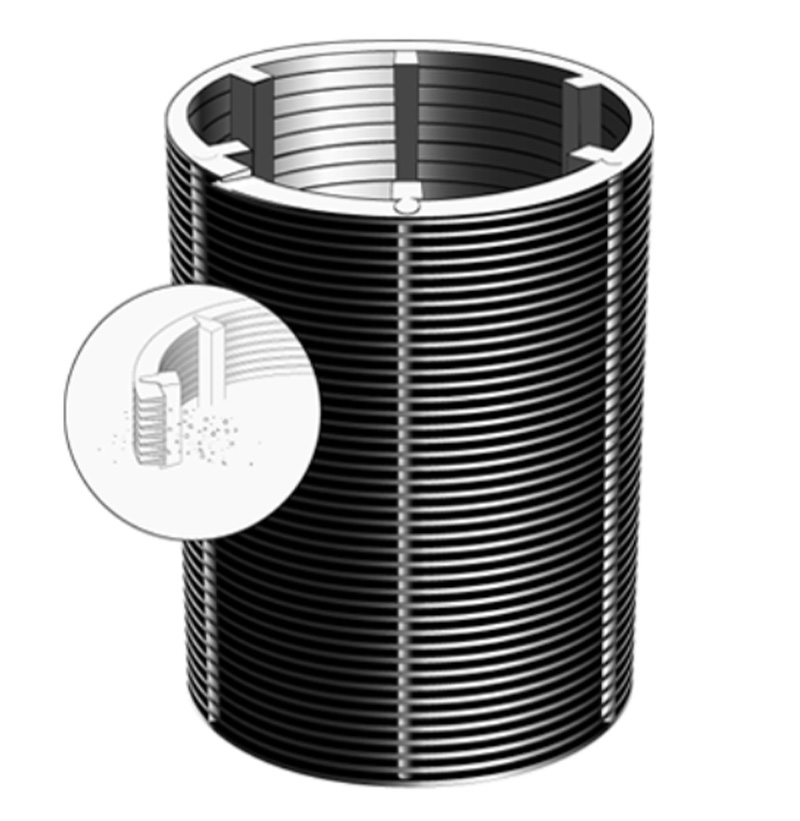

Johnson Screen Tubes, also known as continuous slot wire-wrapped screens, are widely used in groundwater and water well projects where sand control and long-term flow stability are critical. While the basic structure of these screens is well known, their actual performance in the field is often determined by how well they are selected, manufactured, and installed. This article shares practical observations from water well projects where Johnson Screen Tubes have been applied in real operating conditions.   Why Screen Selection Matters in Deep and Medium-Depth Wells In many groundwater projects, especially wells deeper than 30 meters, the surrounding formation is often composed of fine to medium sand with relatively uniform particle distribution. In such conditions, improper screen selection can lead to sand production, pump damage, and declining water output. Johnson Screen Tubes are designed with continuous V-shaped wire slots that widen inward. This structure allows fine particles to bridge at the outer surface while maintaining open flow paths inside the screen. Compared with perforated pipes or slotted casings, continuous slot screens provide a more uniform opening and higher effective open area, which helps reduce entrance velocity and head loss. Field experience shows that when slot size is matched correctly to formation grain size, well development time is reduced and sand pumping issues are minimized.   Manufacturing Quality and Its Impact on Performance Although Johnson Screen Tubes follow a standard design concept, manufacturing quality plays a major role in their service life. Each V-shaped wire is resistance welded to longitudinal support rods, forming a rigid and stable structure. In practice, inconsistencies in slot width, weak welds, or poor material quality can cause early failure, especially in deep wells where collapse strength is critical. Stainless steel grades such as SS304 and SS316 are commonly used to improve corrosion resistance in groundwater environments with varying chemical compositions. From field feedback, screens with consistent slot spacing and well-controlled welding quality show better resistance to deformation during installation and maintain stable performance over long operating periods.   Installation and Well Development Considerations Proper installation is as important as the screen itself. During lowering of the screen into the borehole, alignment and handling must be controlled to avoid mechanical damage. After installation, well development is carried out to remove fine particles from the formation around the screen. Continuous slot screens respond well to development methods such as air lifting and surging, allowing fines to be removed efficiently without damaging the screen structure. Wells developed correctly tend to achieve higher yield and show more stable water quality during operation.   Typical Applications and Operating Conditions Johnson Screen Tubes are commonly used in: Municipal and rural water supply wells Agricultural irrigation wells Industrial groundwater extraction Environmental monitoring wells Dewatering and remediation projects In these applications, screen durability and flow efficiency are key factors affecting long-term operating costs.   Long-Term Performance in Service Well operators often focus on initial flow rate, but long-term stability is equally important. Projects using properly selected Johnson Screen Tubes typically report lower maintenance requirements and fewer sand-related issues over time. In many cases, wells equipped with continuous slot screens remain in service for decades with minimal intervention, provided that material selection and installation practices are appropriate.   Final Thoughts Johnson Screen Tubes are not a one-size-fits-all solution. Their real value comes from correct engineering selection, consistent manufacturing quality, and proper installation. When these factors are aligned, continuous slot screens offer reliable sand control, efficient water production, and long service life in demanding groundwater applications.
