Wedge Wire Screen Cylinder
Products

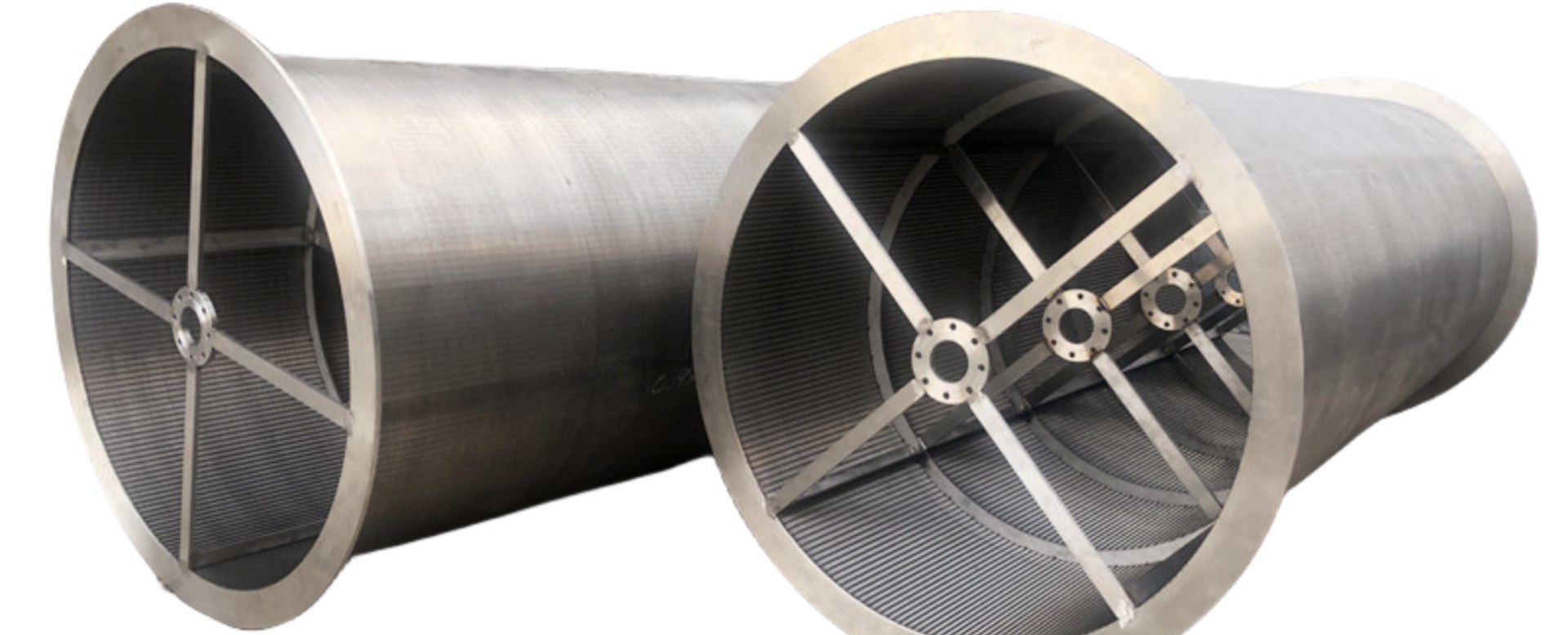

Rotary Drum
The Stainless Steel Wedge Wire Rotary Drum Screen (also known as a Rotary Drum Strainer or Micro-Screen) is a continuously and automatically operating front-end solid-liquid separation device. Its core component is a large cylindrical drum installed horizontally or at a slight incline. The entire circumferential surface of the drum is covered with a stainless steel wedge wire screen (Johnson screen). The wastewater to be treated flows into one end of the drum. Under gravity, the filtrate passes through the wedge wire slots, while solid suspended matter (such as fibers, hair, plastic pieces, and fine particles) is retained on the inner surface of the drum. As the drum rotates slowly, the retained debris is lifted to the top, where it is flushed by spray water into a collection trough, achieving a continuous process of automatic screening, filtration, and residue removal
Screen Cylinder — Axial Internal Wire
This type of filter tube is characterized by an axial profile wire/axial slot direction. The support wire is oriented on the outside of the filter element in a radial direction. The smooth surface of the profile wire is on the inside and the filtration direction is therefore from the inside to outside.
Screen Cylinder — Radial Internal Wire
For this type of wedge wire screen re-roll tube, its support wire is located axially outside the tube, while the surface profile wire is located radially inside the tube. The filter surface of the triangular profile wire faces inward, thus the element employs a FITO (filtering direction from inside to outside) design.
The construction of these wedge wire tubes makes them easy to clean by a scraper on the inside.

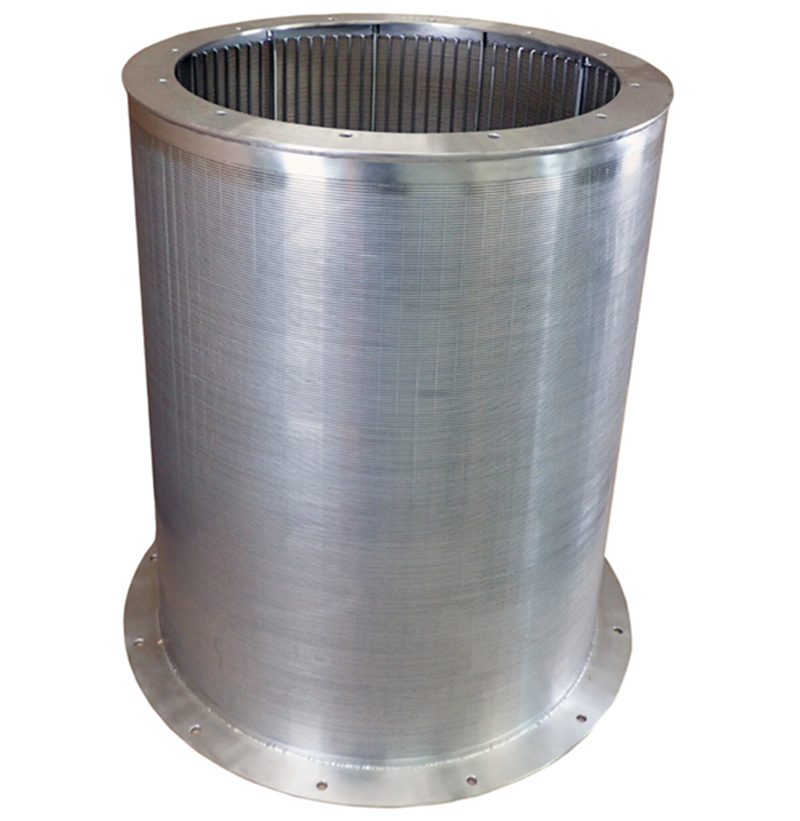

Interstage Screen
The stainless steel wedge wire interstage screen, commonly known as a "Carbon Transfer Screen" or CIL/CIP Cylinder Screen in the gold extraction industry, is a core interstage separation device in carbon-in-pulp (CIP) and carbon-in-leach (CIL) gold extraction processes. It is a large horizontal cylindrical screen with a surface made of high-precision stainless steel wedge wire, installed between leaching tanks. Its primary function is to efficiently and non-destructively separate loaded carbon from slurry during the countercurrent adsorption of gold by activated carbon. It ensures carbon particles smoothly advance to the next adsorption tank while effectively retaining the slurry (containing fine tailings) and returning it to the previous leaching tank, enabling continuous and efficient gold adsorption and concentration.
Intake Screen
The stainless steel wedge wire slot tube (axial internal wire type, inside-out filtration) is the core precision filtering element in self-cleaning filters (e.g., brush/suction type filters). Its structural feature is that the wedge wires are arranged parallel along the axial direction of the tube and welded (different from traditional circumferential winding), forming precise longitudinal filtration slots. During operation, the liquid to be filtered flows from inside the tube and, driven by pressure, passes from inside to outside through the wedge-shaped slots. Impurities are trapped on the inner wall of the tube, while clean liquid collects and flows out from the exterior.
FREQUENTLY ASKED QUESTIONS
Have Any Questions
-
Can I place an order for some samples?
Yes.Of course. You can order some samples to check the quality.
-
What's your MOQ?
If the products you ordered is in stock,MOQ will be flexible,otherwise,MOQ depend on your detailed specifications.
-
What will you do if I am not professional?
In generally, we will produce wedge wire screen according to customer's drawing. If you are not professional, we will recommend the most suitable screen according to your requirement.
-
How can I know how my order is being done?
We will inspect and test all items in order to avoid damage and missing parts before shipping. The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.
-
Can you give warranty of your products?
Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately, with more than 20 years experience in the export. We produce strictly as contract, we pay more attention on raw materials, specifications, quality checking, package, transportation to ensure you will get good products.
-
Is there any after-sale services from your side?
Yes, If you meet any problems while using, just feel free to contact us, we will provide professional technical guidance, we treat every customer as our best friend!
-
What is your lead time for production and delivery?
Typically, it takes 15-30 days after order confirmation, depending on the order quantity and customization. We always strive to deliver on time and will provide you with a detailed production schedule.
-
Why choose us?
1.Our factory have nearly 20 years' experience for the Wedge Wire Screens, We are the direct Manufacturer,so you'll get the TOP quality and BEST price.
2.We have many regular clients all the time,so our quality is guaranteed. -
Do you have certificates?
Yes, we have ISO 9001, ISO14001, ISO45001 etc.
